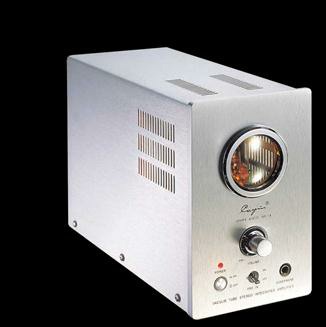

Cayin HA-1A hoofdtelefoonversterker

Topkwaliteit buizen hoofdtelefoonversterker van het merk Cayin. Kan ook gebruikt worden als complete versterker of als voorversterker.

999,00 799,00 U bespaart: 20%
x



High End Stereophile recommended triple use tube amplifier

Numerous overseas awards from UK, USA, EU and Asia

Can be used as integrated amplifier or headphone amplifier

Can also be used as a 14db gain tube pre amplifier

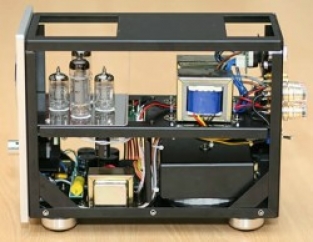

1 x 12AX7 + 1 x 12AU7 for pre-amplifier stage

EL84 x 2 vacuum tubes for power output stage

Silver plated high purity copper internal signal wiring

Special handmade low magnetic leakage toroidal power transformer

Special handmade wide frequency response Ei audio transformers

Ultralinear / Triode mode selection

All point to point wiring (hand soldering)

Detachable power cord system (IEC)







As Headphone Amplifier:

Input impedance: 22K Ohm

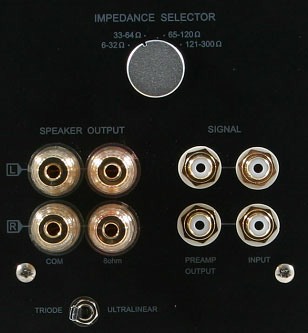

Output impedance: 6 Ohms – 300 Ohms, switchable

Power output: 1W Triode RMS

Input sensitivity: 320mV

Frequency response: 25Hz-30kHz

THD: 1%

S/N ratio: 88dB

Channel balance: 0.5dB



As Integrated Amplifier:

Input impedance: 22K

Output impedance: 8

Power output: 1.2W RMS, Triode,2.2W RMS, Ultralinear

Input sensitivity: 320mV

Frequency response: 25Hz-30kHz

THD:2%

S/N ratio: 85dB

Channel balance:0.5dB



As Preamplifier:

Input impedance: 22Kohms

Frequency response: 15Hz-40kHz

THD: 0.8%

Output: 2000mV (Max 4000mV)

S/N ratio: 82dB

Total gain: 14dB



Power Consumption: 60VA maximum

Dimension W x H x D : 5.25 x 9.25 x 12 inches
