De MC-100B bestaat in feite uit twee aparte versterkers met ieder hun eigen voeding die op e e n chassis gebouwd zijn. Het is in meerdere opzichten een "zware jongen" met zijn 2 x 65. W Ultra Lineair en 2x32 W. in Triode stand. Zijn bijna 30 kg mag in dit verband ook niet onvermeld blijven.
Deze krachtpatser drijft met gemak elk denkbare luidspreker aan in zijn volledige frequentiebereik en geeft de bastonen krachtig en duidelijk weer.
Beschrijving:
Class A push-pulll circuit for reduced distortion.
Operational switchable for functioning as integrated amplifier or power-amplifier only (via external pre-amplifier).
Switchable between ultra linear 65 W. Ultra Linear and 32 W. pure Triode operating mode in push-pull circuit.
Two separate amplifiers with two separate power supplies on one chassis. Final stage in dual mono design.
SRPP circuit design and Nagao type inverter in pre-amplifier section.
ULPP circuit design in power amplification.

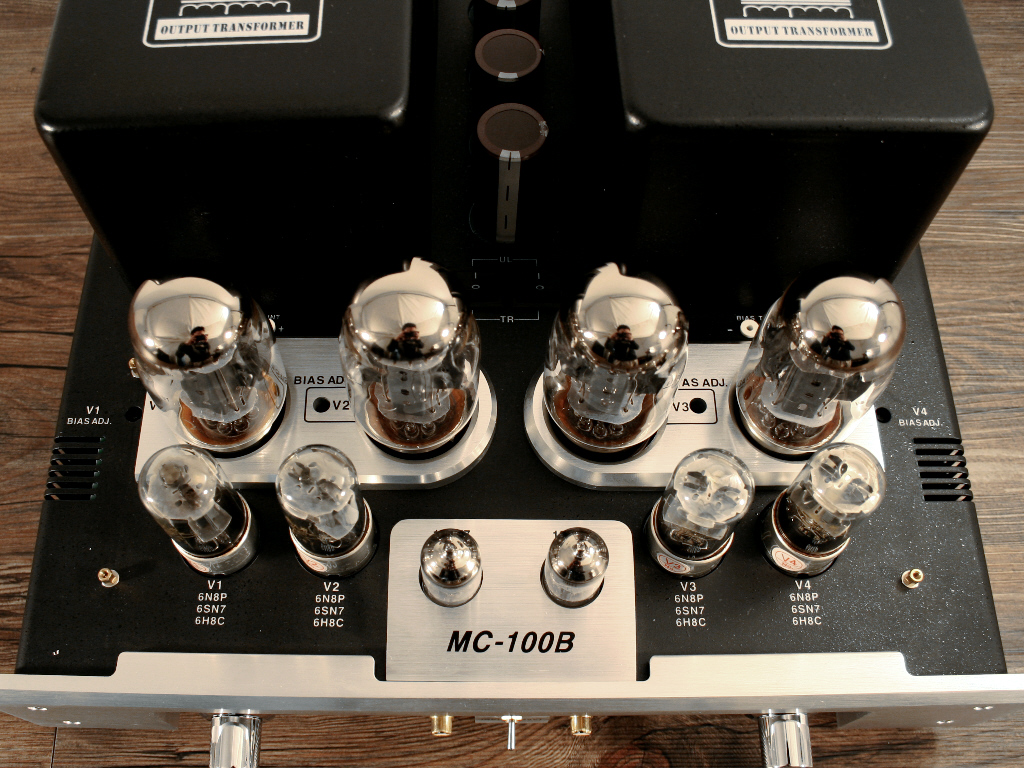

Convenient BIAS control and adjustment vial external testing sockets and potentiometers easy accessible on top panel of amplifier.

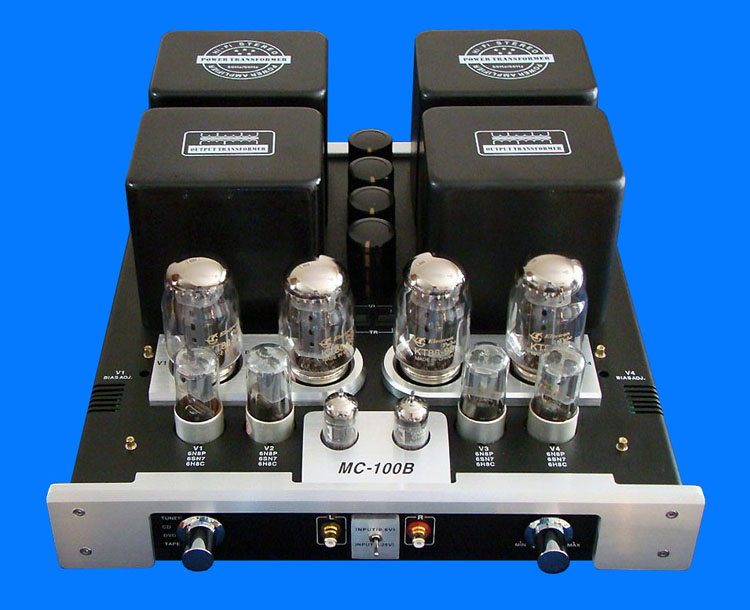

4 x KT 88 tubes in final stage. 4 x 6N7 and 2x12 AX7 in pre stage.
High End output transformers based on Japanese audio grade silicon steel sheet in thickness 0,35 mm and high quality enameled wiring in special coiling arrangment responsible for wide frequence response and dynamic range at full rated output.
Audiophile High End electrolyte MKP capacitors as well as high quality metal precision resistors. Imported high quality low noise and durable potentiometer as volume controller.
Heavy duty chassis with top in stainless steel. Steel bottom and front panel as well as bezels in aluminium.

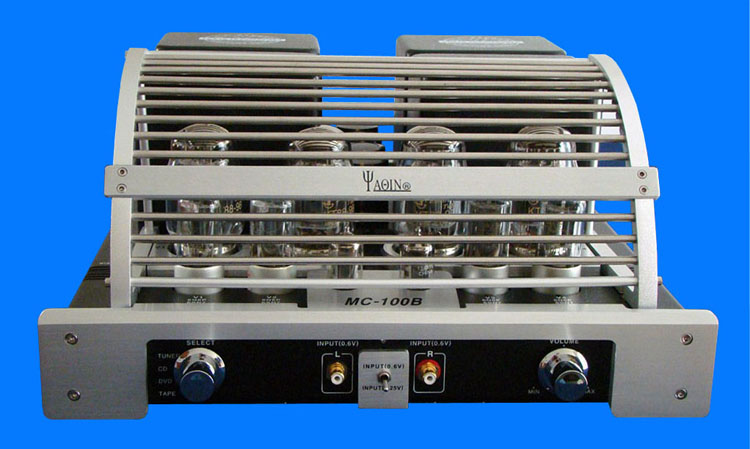

Tube protection case.
